Aluminum Filler Rod

Marine fabricators often face the same problem: a weld passes visual inspection, then fails early because the filler metal was not matched to the base alloy, service temperature, or corrosion exposure. The main concern is not only weld strength. It is long-term resistance to cracking and seawater attack.

This article focuses on one practical feature: alloy compatibility for corrosion-resistant marine welding. It covers GTAW rods and related MIG wire choices used with marine aluminum plate, profiles, tanks, decks, ladders, and structural assemblies.

Rod Basics

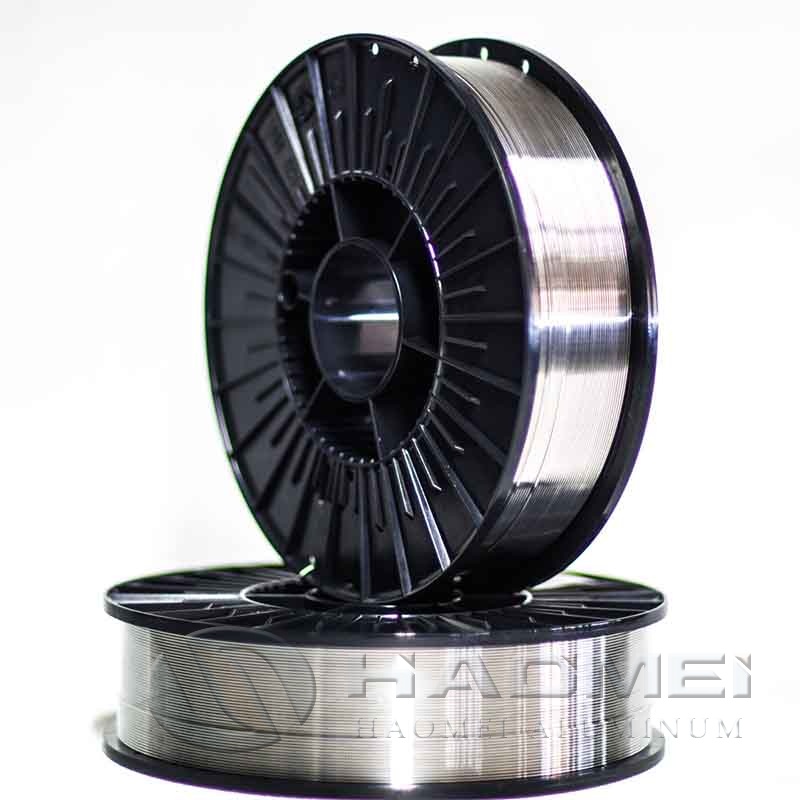

An aluminum filler rod is a straight bare filler metal mainly used for GTAW, also called TIG welding. For GMAW, also called MIG welding, the same alloy family is supplied as spool or drum wire.

For production teams sourcing both TIG rods and wire, certified Alu Welding Wire should be specified by alloy, diameter, standard, batch traceability, and certificate requirements rather than by appearance or price alone.

Common rod diameters include 1.6 mm, 2.4 mm, 3.2 mm, and 4.0 mm. Smaller diameters suit thin-wall fabrication and root passes. Larger diameters suit fillets, groove fill, and heat-intensive work.

Standards

Use recognized standards in every purchase specification and welding procedure.

These documents do not replace engineering review. They provide a verifiable framework for chemical limits, procedure control, and inspection.

Alloy Match

The wrong filler can create hot cracking, poor ductility, anodizing color mismatch, or reduced corrosion resistance. Start with the base metal series.

ER5356 contains about 5% magnesium and is widely used for marine aluminum welding. ER5183 is also Mg-bearing and is commonly selected for 5083 and 5086 where higher mechanical performance is needed. ER4043 contains about 5% silicon, making it fluid and crack-resistant, but it is not usually the first choice for high-strength 5xxx marine assemblies.

ER5356 Check

ER5356 is popular because it offers practical weldability, good color match after anodizing, and useful strength. It is often selected for gangways, railings, hull components, storage tanks, and welded profiles.

However, there is an important limitation. The Aluminum Association and welding references commonly warn against using 5xxx fillers containing more than about 3% Mg in sustained elevated-temperature service, typically above 150°F or 65°C, because sensitization can increase stress-corrosion-cracking risk.

Use ER5356 when:

• The base metal is 5052, 5083, 5086, 5454, 6061, or 6082 and the WPS permits it.
• Seawater exposure and anodized color match matter.
• The assembly will not operate continuously above 65°C.
• Strength demand is moderate to high and verified by procedure testing.

Avoid automatic substitution when:

• The drawing specifies ER5183 for 5083 structures.
• The part is exposed to engine-room heat, exhaust zones, or heated tanks.
• The project is classed and consumables must match an approved WPS.

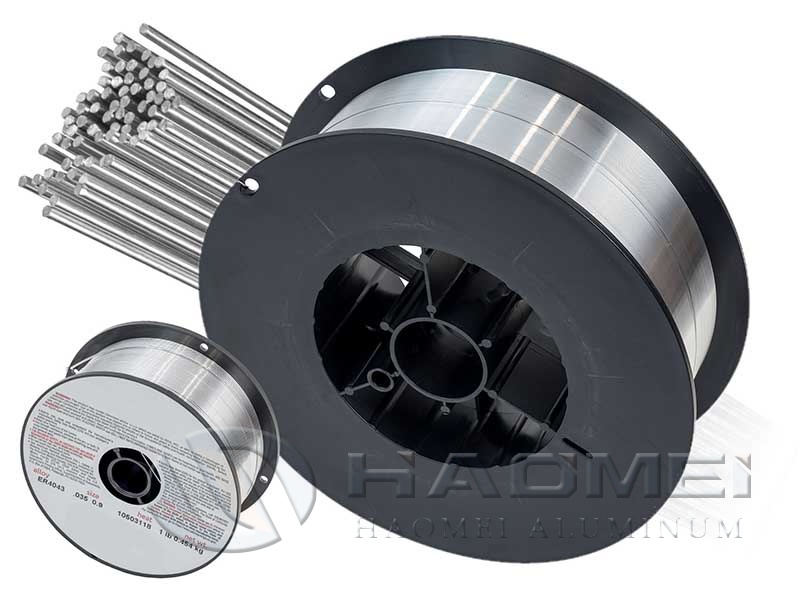

ER5183 Choice

ER5183 is frequently used for 5083, 5086, and similar marine alloys. Compared with ER5356, it is often specified where the welded joint needs higher as-welded strength. This makes it relevant for hull structures, pressure-containing components, and load-bearing assemblies.

Do not choose ER5183 only because it sounds stronger. Confirm base alloy, joint design, thickness, preheat limits, and test requirements. Higher strength does not compensate for poor cleaning, excess heat input, or incorrect shielding gas.

Inspection Steps

A clean certificate and clean surface are both necessary. Use this receiving checklist before releasing rods to production.

Cross-contamination is a real risk in facilities handling aluminum, carbon steel, pipe fitting work, and seamless stainless steel pipe. Separate brushes, benches, gloves, and cutting tools help prevent embedded iron particles that later form rust stains and pitting sites.

Welding Control

Follow a repeatable process rather than relying on operator habit.

1. Identify the exact base alloy and temper from the drawing or mill certificate.
2. Select the filler classification allowed by the WPS.
3. Remove oil with an approved solvent before oxide removal.
4. Use a stainless brush dedicated only to aluminum.
5. Weld soon after cleaning, since aluminum oxide reforms quickly.
6. Keep rods dry and return unused rods to sealed storage.
7. Control heat input to limit distortion, porosity, and loss of mechanical properties.
8. Record shielding gas, current range, travel speed, and interpass temperature.
9. Perform visual, dye penetrant, radiographic, or bend testing as specified.

For TIG welding, AC current is commonly used to balance penetration and oxide cleaning. Argon is the standard shielding gas for many applications. Argon-helium mixtures can improve heat input on thicker sections, but they should be qualified in the WPS.

Cost Factors

The lowest rod price can become expensive if it causes rework or rejected welds. Evaluate the total supply condition.

Do not compare offers by weight alone. Compare alloy, standard, certificate type, packaging, batch traceability, and delivery reliability.

Order Checklist

Before ordering rods for marine fabrication, send a specification that includes:

• Filler classification: ER5356, ER5183, or ER4043.
• Product form: straight TIG rod or MIG wire.
• Diameter and length for rods.
• Applicable standard: AWS A5.10/A5.10M or ISO 18273.
• Required certificate type and traceability records.
• Approved WPS number, if the project is controlled by class or code.
• Packaging requirement for humid or coastal storage.
• Maximum operating temperature of the welded assembly.
• Base materials to be welded, such as 5083, 5086, 5052, 6061, or 6082.

This checklist reduces alloy mismatch, documentation gaps, and corrosion-related failures before the material reaches the welding station.
